TDFG99IMU Fiber Optic Inertial Unit

Keyword：

Introduction

Accesories

Recommended

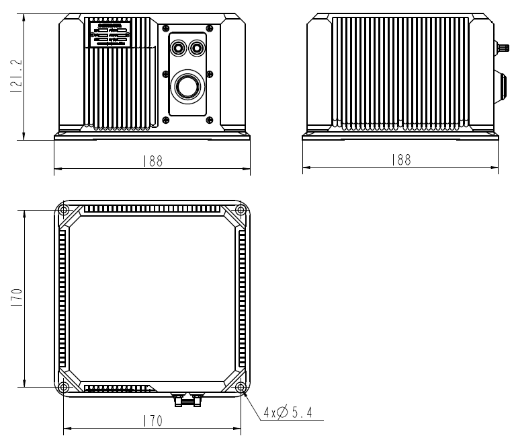

Overview

This type of fiber optic inertial unit has the advantages of small size, light weight, low power consumption, and high accuracy. It contains eight points of vibration reduction and can meet the application scenarios of large impact and large vibration. It can be used to design pure strap down and meet the needs of new unmanned platforms, water/torpedo weapons, as well as land, airborne, and missile weapon platforms for small size and high-precision inertial unit equipment. It has the dynamic measurement function of carrier angular motion and linear motion information.

Performance

Project	Contents	Index	Notes
Performance indicators of gyroscope
Zero bias indicator	Zero bias stability (100s)	0.005°/h
	Zero bias stability (10s)	0.01°/h
	Variable temperature zero bias stability	0.02°/h
Scale Factor	Full temperature scale factor	≤150ppm
Other indicators	random walk coefficient	0.001°/h
Other indicators	input range	400°/s
Performance indicators of accelerometer
Deviation index	Deviation monthly comprehensive error	20μg
Zero bias indicator	Zero bias temperature sensitivity	20μg/℃
Scale Factor	Scale factor monthly comprehensive error	20ppm
Scale Factor	Scale factor temperature sensitivity	20ppm/℃
Range indicator	Input range	±20g
Whole machine characteristics
Environmental performance indicators	Operation temperature	-40℃～60℃
Environmental performance indicators	Storage temperature	-45℃～70℃
General requirements	Power supply	18～36V（DC）
General requirements	Stable power consumption	≤15W	Startup power consumption ≤ 25W
