F100IMU Fiber Optic Inertial Unit
Keyword：
Introduction
Accessories
Recommendations
I Introduction
The Inertial Measurement Unit (IMU) features advantages such as compact size, light weight, low power consumption, and high precision. It can be used to design pure strapdown, single-axis, and dual-axis modulated inertial navigation systems, meeting the demand for small-size, high-precision inertial navigation equipment in new unmanned platforms, underwater/torpedo weaponry, as well as land-based and airborne weapon platforms. It possesses the capability for dynamic measurement of carrier angular and linear motion information.
II.Technical Parameters
Item | Indicator | Description | Parameter | Remark |
Gyro | Zero Bias | Bias Stability (100s) | 0.005°/h |
|
Zero Bias Stability at Variable Temperature (100s) | 0.02°/h | Temperature Variation Rate 1℃/min(-40℃~60℃) | ||
Scaling Factor | Scale Factor Nonlinearity | ≤20ppm |
| |
Other Indicators | Random Walk Coefficient | 0.0005°/½h |
| |
Input Range | 400°/s |
| ||
Accelerometer | Deviation | Zero Bias Repeatability | 20μg |
|
Zero Bias | Bias Temperature Sensitivity | 20μg/℃ |
| |
Scaling Factor | Scale Factor Repeatability | 20ppm |
| |
Scale Factor Temperature Sensitivity | 20ppm/℃ |
| ||
Range Indicators | Input Range | ±20g |
| |
Features | Environmental Performance | Operating Temperature | -40℃～60℃ |
|
Storage Temperature | -45℃～70℃ |
| ||
General Requirements | Power Supply | 18～36V（DC） |
| |
Stable Power Consumption | ≤16W | Startup Power Consumption ≤20W | ||
Mounting Hole Diameter | 4-Φ5.5mm |
| ||
Dimensions(mm) | 188×188×123.2 |
| ||
Weight | ≤4800g |
|
III Electrical Interface Definition (JY27496E17E42PN-H)
Pinout | Signal | Type | Description | Remark |
39,40 | +24V | Input | Power Input | +24V |
41,42 | GND | Input | ||
5 | RS422_TX1+ | Output | RS422 Serial Port 1 | IMU Raw Data |
6 | RS422_TX1- | Output | ||
7 | RS422_RX1+ | Input | ||
8 | RS422_RX1- | Input | ||
9 | RS422_TX2+ | Output | RS422 Serial Port 2 | IMU Synchronization Signal |
10 | RS422_TX2- | Output | ||
11 | RS422_RX2+ | Input | ||
12 | RS422_RX2- | Input | ||
13 | RS422_TX2+ | Output | RS422 Serial Port 3 | Debugging Interface |
14 | RS422_TX2- | Output | ||
15 | RS422_RX2+ | Input | ||
16 | RS422_RX2- | Input |

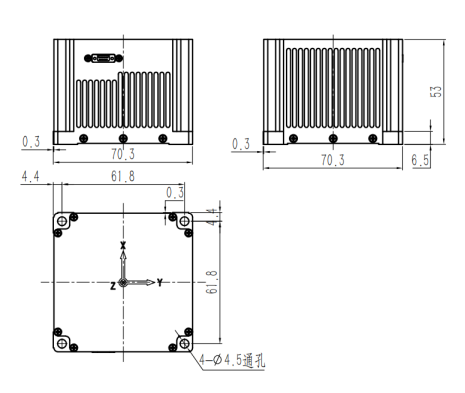

IV Structure Diagram
